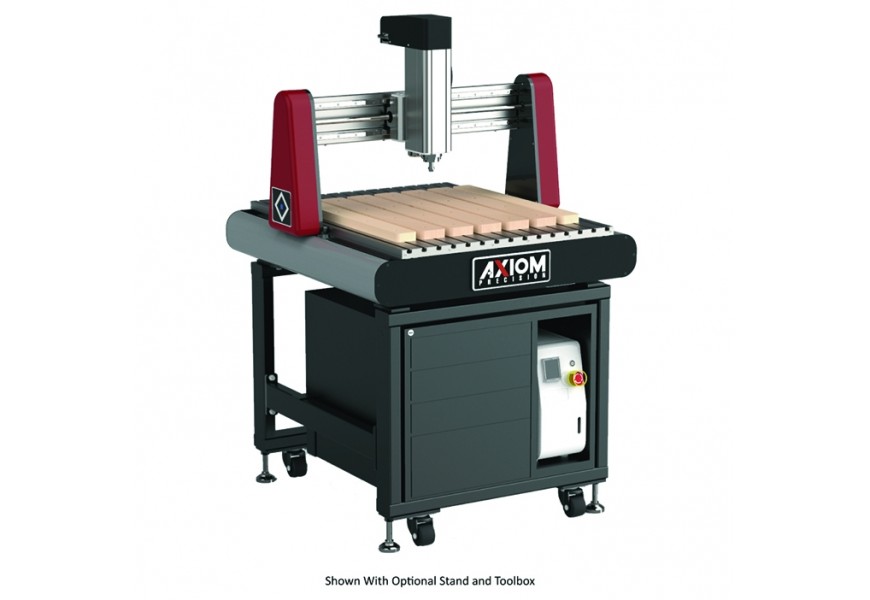

Axiom Iconic Series

CA $0.00

Quick Overview

Select options below:
Only 0 left

* Required Fields

CA $0.00


Rarely does the least expensive solution possess best-in-class features…That changes with the launch of Axiom’s new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.

These machines ship directly to your shop for $399. (Residential & lift-gate delivery services included!)

X axis travel 24" (610mm)
Y axis travel Iconic-4 = 24" (610mm)
Iconic-6 = 36" (915mm)
Iconic-8 = 48" (1220mm)
Z axis travel 3.937" (100mm)
Table work areaIconic-4 = 28.4" x 37"
Iconic-6 = 28.4" x 49"
Iconic-8 = 28.4" x 61"
Electro Spindle800W (1HP)
Spindle speed0-24,000 RPM
Rapid feed rate150 IPM (3.81 MPM)
Precision Linear GuidewayX/Y/Z
Precision Ball ScrewX/Y/Z
Ball Screw Diameter 16mm
Positional Accuracy +/- .00589" (0.15mm)
Power requirements115V, 50~60Hz, 13A, 1-Phase
Working TableHigh rigidity Aluminum Extrusion
Gantry bridgeHigh rigidity Aluminum Extrusion
Gantry SupportsAluminum billet machined
Gantry Clearance4 1/2" (114.0mm)
Machine BaseAll Welded Steel Frame
Machine DimensionsIconic-4 = 38"L x 35"W x 28"H
Iconic-6 = 50"L x 35"W x 28"H
Iconic-8 = 62"L x 35"W x 28"H
Shipping DimensionsIconic-4 = 40" x 37" x 15"
Iconic-6 = 52" x 37" x 15"
Iconic-8 = 64" x 37" x 15"
Machine WeightIconic-4 = 176 lbs
Iconic-6 = 209 lbs
Iconic-8 = 242 lbs
Tool Touch OffIncluded
Controller•Richauto B11 DSP
CNC motion control system
•USB port for easy file transfer.
Product ManualComing soon
Product ManualView Product Manual
