ALK42 - Axiom 4.2W Laser Kit by JTech For AR Series

CA $1,299.00

Quick Overview

This laser produces an amazing 4.2W of power with included 2.5A driver!

Built by J Tech Photonics specifically for any Axiom AR series CNC machine, this is the strongest laser accessory available in the market.

Due to the unique safety concerns related to laser technology a waiver will be emailed to you and must be signed prior to shipment

Download Post Processors

Only 0 left

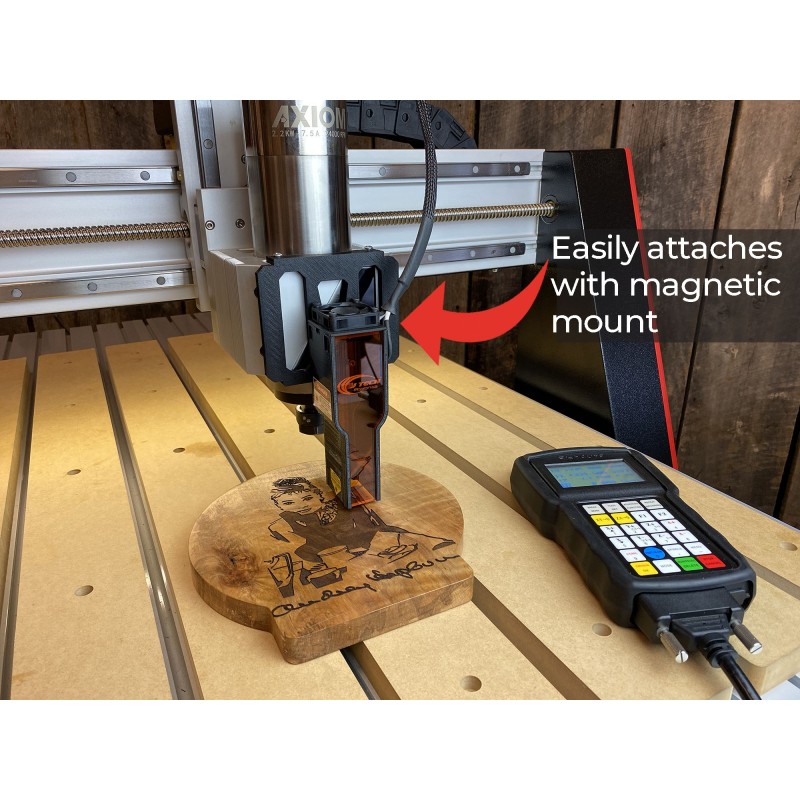

Engrave on wood, leather, acrylics, and many other materials.
Cut thin and soft woods like Balsa, Basswood, and many other types of materials like foam, paper, cloth and acrylics.

MAKE incredible objects for projects or production. Your creations are only limited by your imagination!

Compatible with all Basic, Pro, Pro+ & Elite Series machines.

The new Axiom CNC laser by J Tech Photonics raises the bar in CNC accessory lasers. Precision laser trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, ESD protection, current limiting, and the list goes on….But we have safety in mind as well! The US Federal Government has a list of things that are required for operating these high power class 4 lasers. They might seem trivial, but they could save your eyesight! Here is a rundown of the safety features which will protect yourself and others:

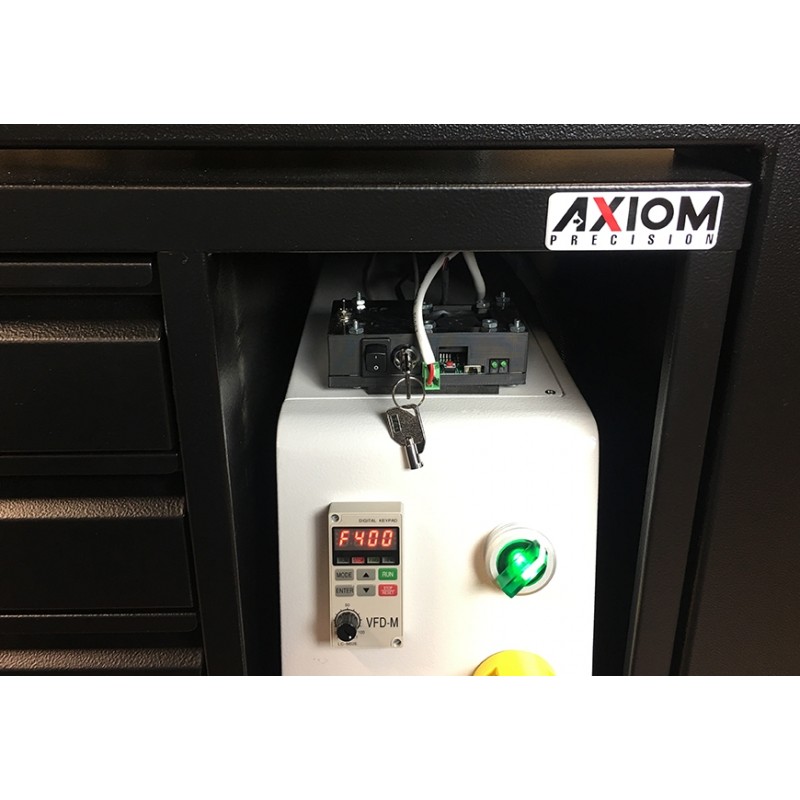

Key Switch – A key is needed to enable the laser. When the key switch is turned on, the laser is enabled and the key CANNOT come out. You can only remove the key when it is disabled. This feature is good if you have curious children or have your laser in a shared area and want to limit use. Just take the key out and hide it!

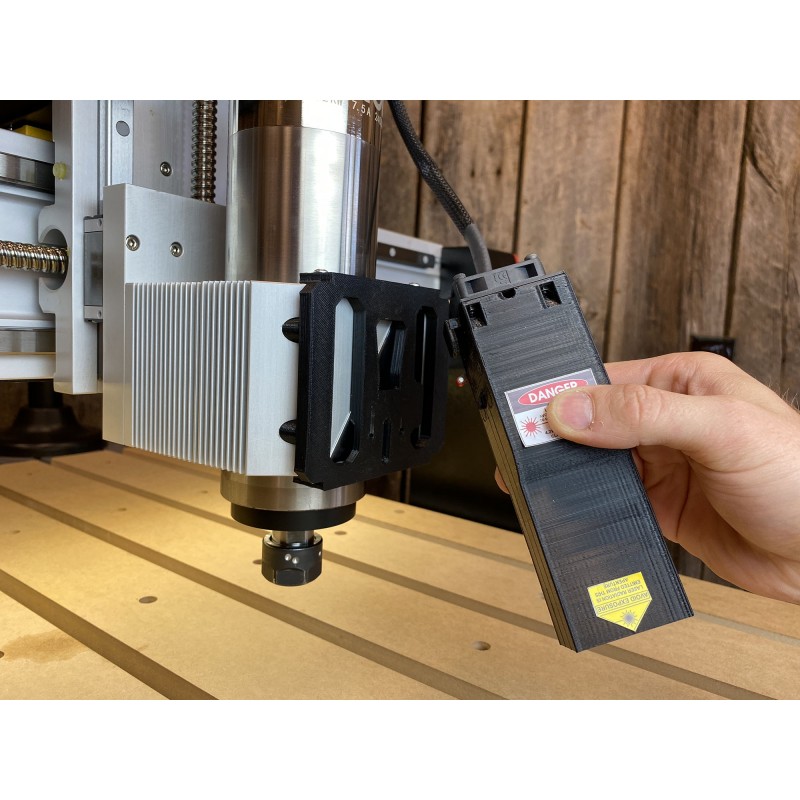

Remote Interlocks – This feature allows for addition of a switch on your enclosure so when it is open, the laser will automatically turn off. An interlock switch is also installed on the rear surface of the laser which insures that if the laser is removed from your Axiom CNC router, the beam is interrupted. They’ve also added an E Stop button for the laser, which is always good for if you need to stop the laser quickly!

Power Fault Protection – In the event of a power failure, your laser will be disabled, preventing the beam to illuminate as the power is restored. Simply press the reset button and you are back in action!

Emission Indicator –  The small little LED on the front to let you know when your laser is on.

This kit is specific to the Axiom Precision line of CNC machines. This has everything you need to get your laser up and running on your Axiom machine.

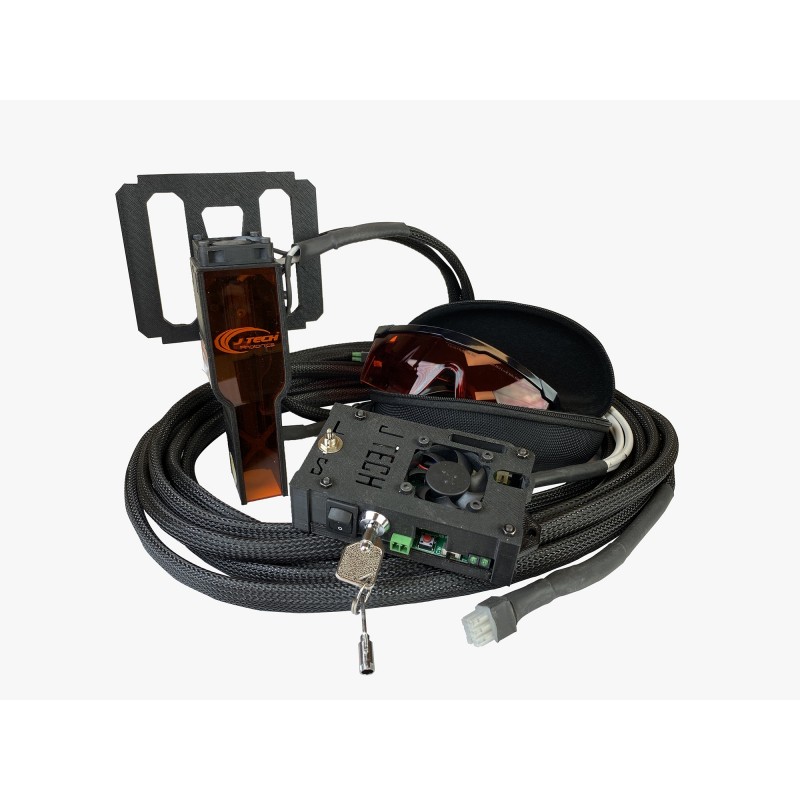

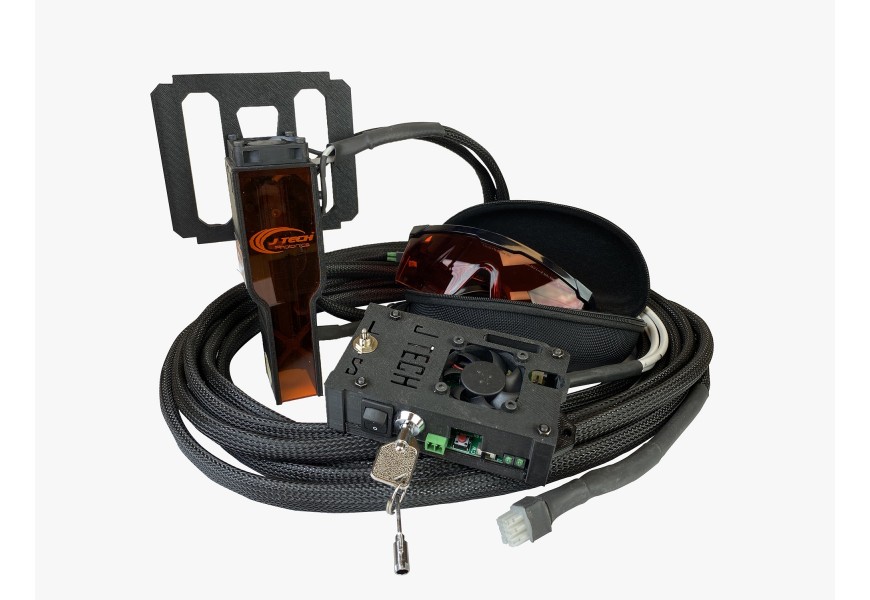

This kit includes:

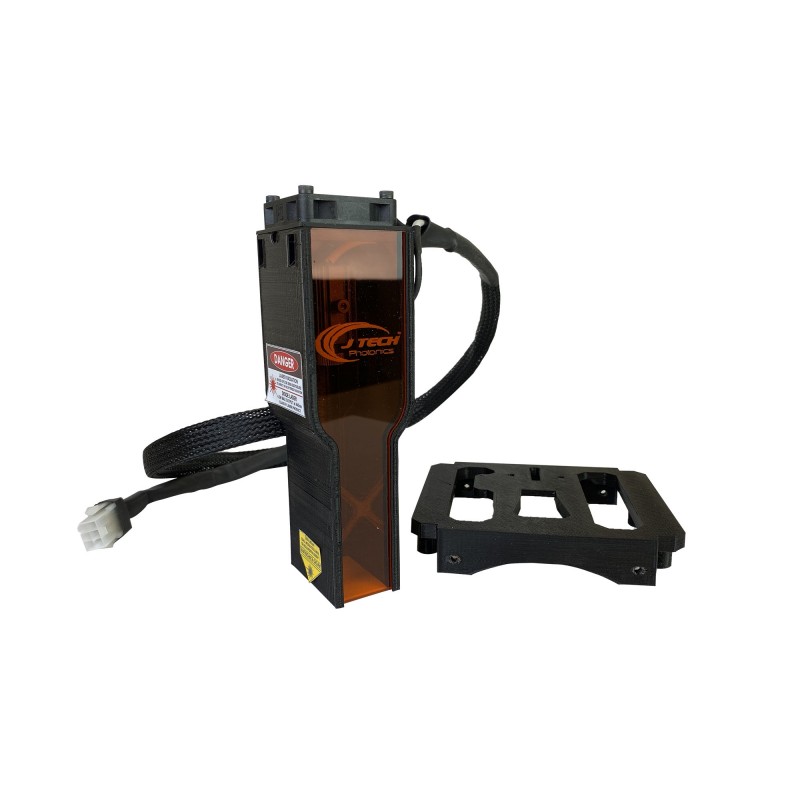

• 4.2W 445nm Laser in Custom Protective Housing and Mount
• 2.5 Amp Adjustable Safety Compliant Laser Diode Driver with Pre-Wired Connections
• Power Adapter 12V 2.5A, US Style Plug

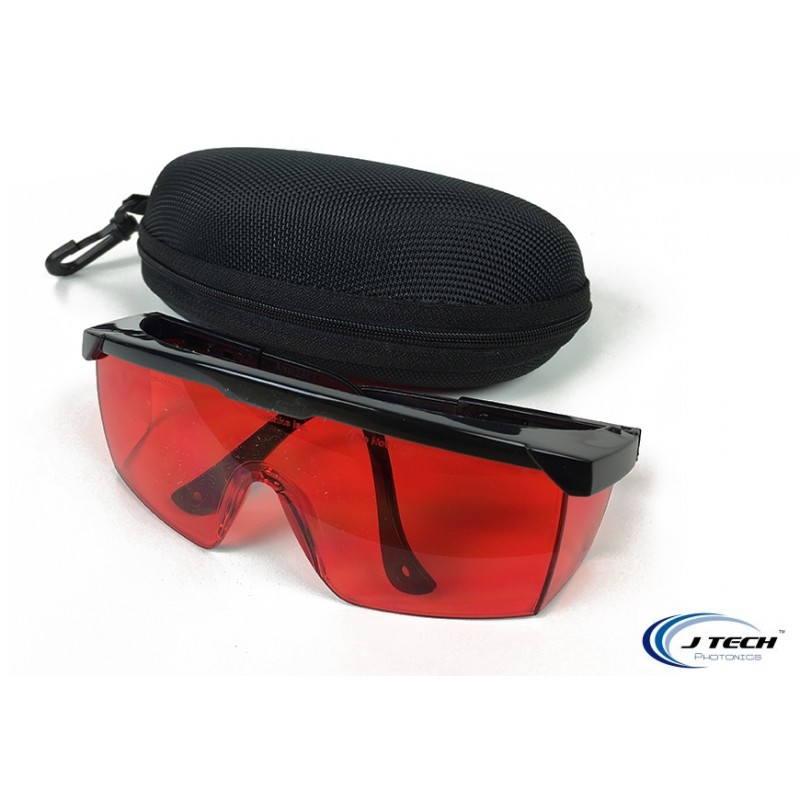

• Laser Safety Goggles for 445nm Lasers
• Laser Extension Cables

The laser unit does not allow for software variability of output intensity. Therefore greyscale is not supported.

Laser Overview
This is the strongest available laser offered on the market. We set the current to the maximum level recommended by the manufacturer to achieve a high level of power while still allowing for maximum lifetime.

Absolute Maximum Ratings:
Item Absolute Maximum Ratings Unit
Forward Current (Tc = 25°C) 3 A
Absolute max output optical power >4.5 W
Allowable Reverse Current (Tc = 25°C) 85 mA
Operating Case Temperature 50 °C
Electrical / Optical Characteristics:
Item Min Typ. Max Unit
Optical Output Power @2.5 amps 4.2 4.5 W
Dominant Wavelength 435 455 nm
Threshold Current 80 220 mA
Operating Voltage 3.7 5.5 V
Focused Spot Size 0.011 0.014 Inches
Beam Divergence Full Angle (1/e^2) // 5 14 25 deg.
Beam Divergence Full Angle (1/e^2) – Perp 30 44 50 deg.

-Note: The beam is slightly rectangular. Focused size specification is for the long axis.

-Above specifications are for reference purposes only and are subject to change.  Figures in specifications may contain measurement errors.

Driver Overview This is the fourth generation of the popular High Current Laser Diode Driver series.  We designed this new generation to follow the federal guidelines for safety compliance for high power Class 4 laser operation.  This includes the use of a key enable switch, safety interlock system, power off reset, and laser LED indicators.  All of these features make for a safer laser operation and will comply with federal laws regulating such operations.

At the heart of the product are laser trimmed parallel regulators to give constant current without the large temperature dissipation of other regulators. Couple this with inherent safety features like soft starting, current isolation, reverse protection, ESD protection, and thermal shutdown control and you have all you need in a small package.

The driver comes with pre-wired connections to integrate into the Axiom machines quickly.

• High power current source for driving Laser Diodes and Light Emitting Diodes.
• Current Range of  2.5 Amps.
• Current Ranges are adjustable in 500ma increments.
• Integrated cooling fan
• Soft start for diode protection.
• Reverse diode and ESD protection.
• Thermal Protection and Over Current Protection.
• Federal Compliant Safety Features
• Key switch, Remote Interlock, Power Fault Reset
• Compact Size.
• CW Mode and Input Control Mode.
• Digitally isolated control input.
• Control from CW to 5KHz.
• Configurable Input signal: Inverting /Non-Inverting.
• Multiple connector options for both Laser/LED output and control input.
• LED status lights for input laser enabled and laser on.

Specification HCDBSAFDA2_5AMP
Current Source Range: 0 – 2.5 Amps
Current Limit Jumper Settings: 0.5, 1.0, 1.5, 2.0, 2.5 Amps
Compliance Voltage w/12V adapter: 8 volts
Current Resolution: 0.1%
Current Adjustment: Analog Trim Pot
Current Range Accuracy Always greater than limit, no more than 15%
Laser Diode Protection: Soft Start, Reverse Voltage, Current Limit, Thermal Shutdown
Integrated Safety Features Laser Enable Key Switch, Integrated Laser Interlock, Power off Reset, LED Indicators
AC Adapter Input Voltage: 100 – 240 VAC
Control Signal Digital Isolation Voltage: 4500 Vrms
Minimum Control Signal ”Turn On” Voltage: 2.8 Volts
Control Signal Maximum Voltage: 36 Volts
Control Signal Maximum Current: 50 ma
Control Signal Maximum Frequency: 5KHz
Connectors: Screw Terminal and Molex Mini-Fit Jr™ Connectors
Operating Temperature: 0 to 40 °C
Storage Temperature: -40 to 70 °C
Dimensions: 3.6″ x 2.2″

Customer Reviews

Axiom Laser Review by Denzill
I would like to thank you and the guys/girls at Axiom for producing yet another fantastic accessory for your line of CNC machines, yesterday I installed the JTech laser to my AR8 machine, installation from start to finish was about 1.5hrs.. a quick file to test and hey presto one laser etched word..
So straight out of the box a perfectly working system, rare these days... (Posted on 12/27/2017)
