Details

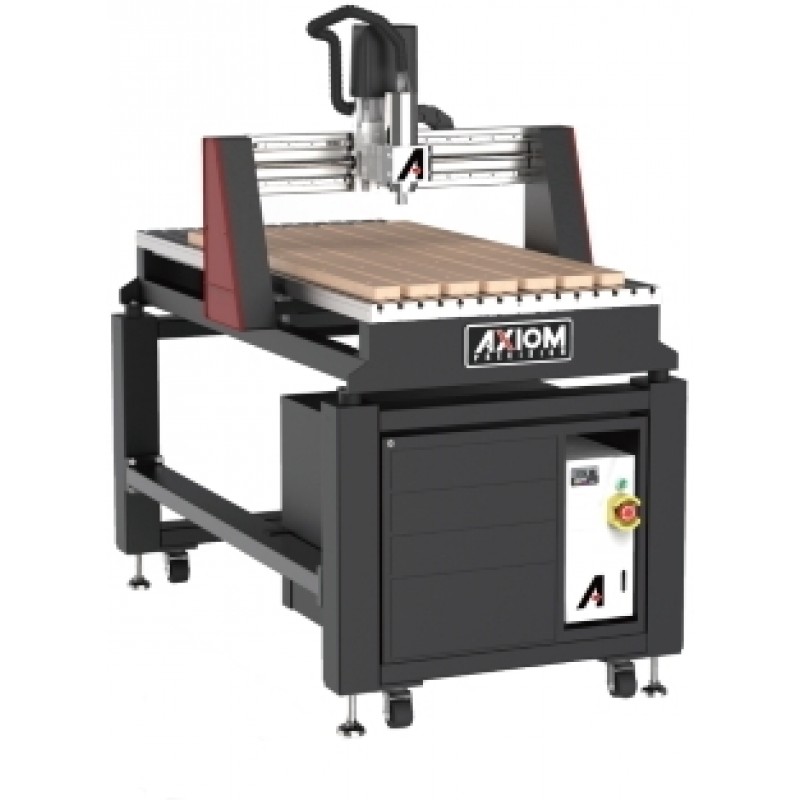

The Axiom Precision AutoRoute Pro Series of CNC routers offers all of the great features of our Pro Series machines, but adds 4th-axis capability. Powerful electro spindle performance, and rotary machining capability in a compact industrial machine. Our Pro+ Series CNC routers have a full 6'' Z travel capacity, and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system. Each Pro+ machine is prewired to accept our optional Rotary Kit. The Axiom Autoroute Pro+ Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table. In addition, the integrated MDF spoil boards promise you the all precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.

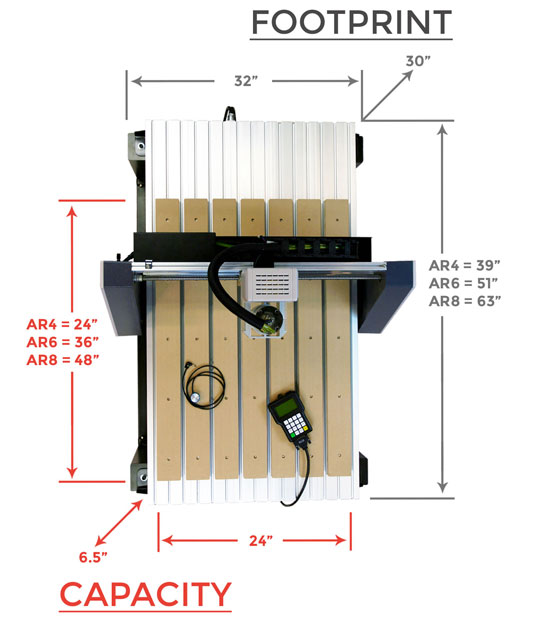

Choose from three footprint options, 24” x 24”, 24” x 36” and 24” x 48”. There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto controller is a powerful, lightweight and easy to use controller with nearly a decade of proven results in demanding applications.
These machines ship directly to your shop for $499. (Residential & lift-gate delivery services included!)
| X axis travel | 24" (610mm) |
| Y axis travel | AR4 = 24" (610mm) AR6 = 36" (910mm) AR8 = 48" (1210mm) |
| Z axis travel | 6" (153mm) |
| C axis travel | 360deg |
| Table work area | AR4 = 28.4" x 39" AR6 = 28.4" x 51" AR8 = 28.4" x 63" |
| Spindle Configuration | ER20 |
| Included Collets | 1/4" & 1/2" |
| Electro Spindle | 2.2KW |
| Spindle speed | 0~24000 RPM |
| Rapid feed rate | 200 IPM (5 MPM) |
| Precision Linear Guideway | X/Y/Z |
| Precision Ball Screw | X/Y/Z |
| Ball Screw Diameter | 16mm |
| Positional Accuracy | +/- .00393" (0.10mm) |
| Power requirements | 220 V,50~60 Hz, 10A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum alloy gravity cast |
| Gantry Clearance | 6.5" (165.1mm) |
| Machine Base | All Welded Steel |
| Frame Machine Dimensions | AR4 = 39.17"L x 37.36"W x 30.27"H AR6 = 51.18"L x 37.36"W x 30.27"H AR8 = 62.99"L x 37.36"W x 30.27"H |
| Shipping Dimensions | AR4 = 42"L x 39"W x 33"H AR6 = 53"L x 39"W x 33"H AR8 = 65"L x 39"W x 33"H |
| Shipping Weight | AR4 = 320 lbs AR6 = 360 lbs AR8 = 405 lbs |
| Tool Touch-Off Device | Included |
| Onboard Cooling System | Included |
| Controller | •Richauto B18 DSP 4-Axis Controller •CNC motion control system • USB port for easy file transfer. |
| Language | Support English / Chinese |
| Product Manual | View Product Manual |
